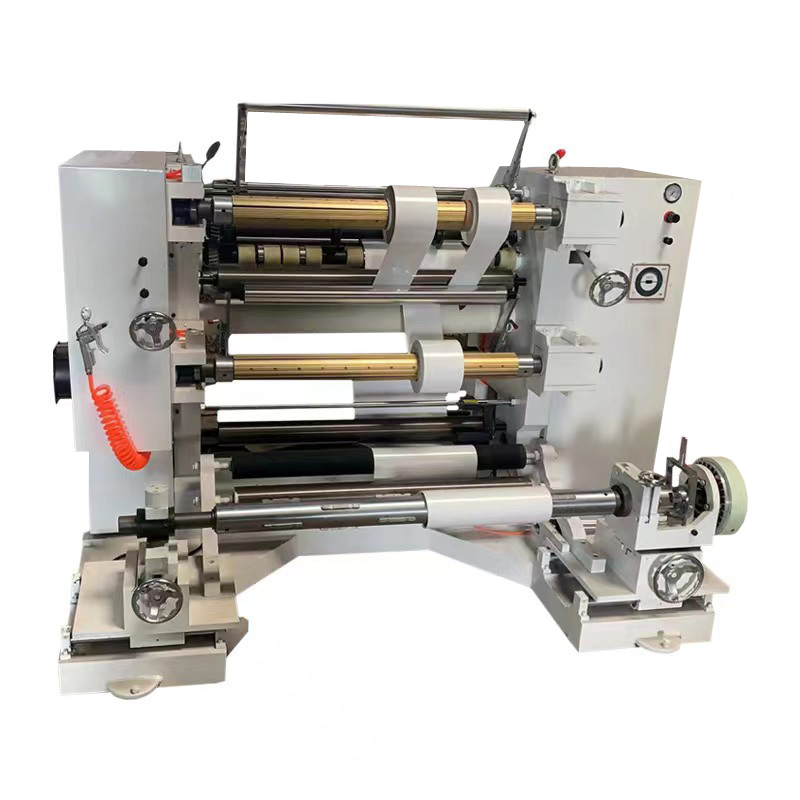

PET film slitter rewinder is mainly suitable for slitting various roll materials such as PET, PVC, BOPP, PE aluminum foil paper, white cardboard, etc. During the production process, it can cut edges and slit according to the width of different materials.
The machine adopts photoelectric eye automatic correction system, the unwinding part slides sensitively, and irregular materials can automatically follow the edge and line to accurately cut.
Features:
- The machine adopts double-axis winding, which is more efficient.
- Both unwinding and winding are controlled by magnetic powder clutch, which is more stable.
Machine parameters:
Name: PET Film Slitter Rewinder
Model: PPD-PET1100
Unwinding width: 1100mm
Unwinding inner diameter: 76mm
Unwinding outer diameter: max650mm
Rewinding width: max1100mm
Rewinding inner diameter: 76mm
Rewinding diameter: max450mm
Slitting speed: 120-250 m/min
Blade type: Straight blade, 10 pieces
Power: 6.75kw
Voltage: 220/380/415V, 50Hz
