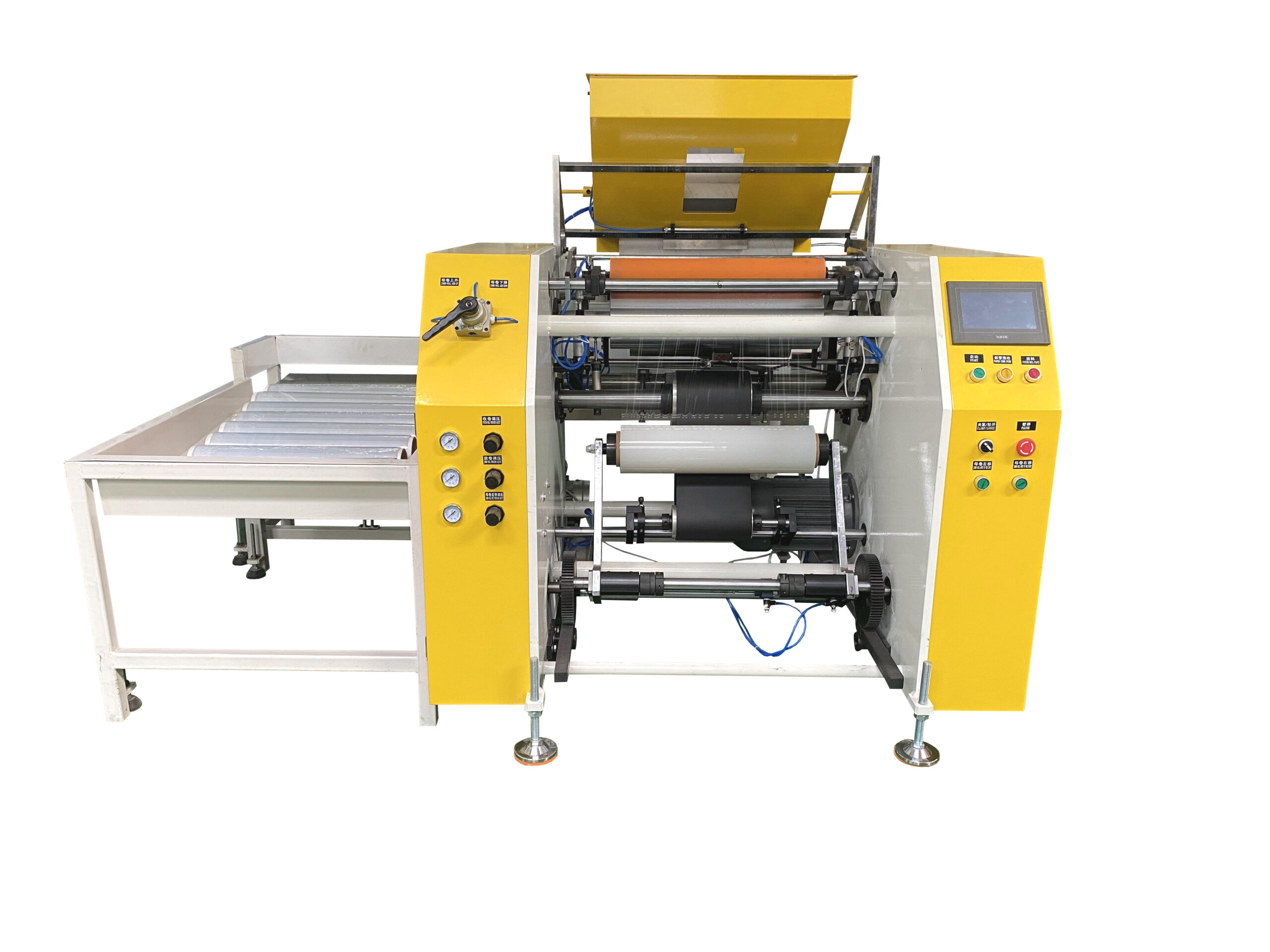

Automatic stretch film rewinding machine adopts touch screen,PLC programed, Inverter control motor for rewinding of PE stretch film, pallet stretch wrap, stretch wrap film, food stretch wrap film, PVC food cling film etc with high speed production.
Features:
1.Automatic meter counting, automatic rewinding, automatic cut off for end of rewind roll by heating wire,high degree in automation.
2.Unwind roll loading by pneumatic control hand valve control
3.Automatic coveyor and automatic stacking of the product roll.
Main Data:
Name:Automatic Stretch Film Rewinding Machine
Model:PPD-HARW500
Width of the unwind Roll:500mm
Width of rewind roll :500mm
Unwind roll core size:3inch
Diameter of unwind roll:max400mm
Rewind roll paper core ID:1.5/2/3inch
Diameter of rewind roll:max180mm
Mechanical speed:max1200m/min
Power:4.37kw
Voltage:220/380/415V,50Hz
NOTE:Different specs can be customized.
