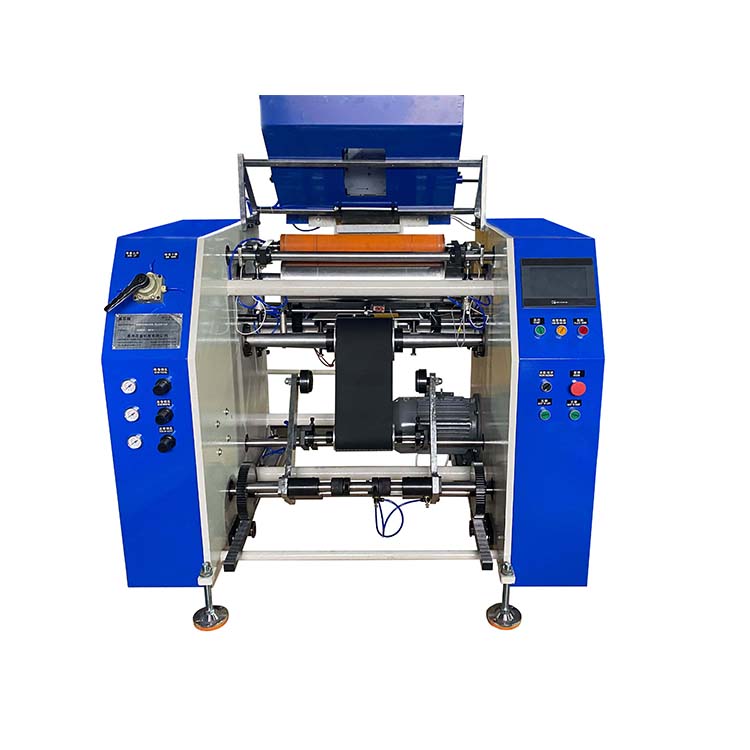

Automatic 5 shaft cling film rewinder comes with 5 shafts,automatic paper tube replacement and film cutting functions allow the whole rewinding process to proceed at a fast speed. The finished roll can have a flat,smooth surface.
Features:
1. 5 shafts continuous rewinding,which greatly provides production
efficiency.
2. PLC+HMI+Inverter control,which is convenient and fast.
3. Machine will automatic stop if there is no paper core in the hopper.
Main Data:
Name:Automatic 5 Shaft Cling Film Rewinder
Model:PPD-5SH450
Mother roll width:450mm
Mother roll inner core:3inch(76mm)
Mother roll outer diameter:max 475mm
Rewind roll core:35/38/40mm option
Rewind roll length:5-150m
Rewind roll width:max450mm
Speed:max650m/min
Voltage:220/380415/450v,3 ph
Power:4.37kw
NOTE:Different specs can be customized.
